Lankhorst Piggyback Blocks
Secure and proper support for the protection of your smaller pipelines
Reliable secondary pipeline support
Piggyback Blocks are engineered to provide secure, durable support and guidance for secondary pipelines or cables during offshore pipe-laying operations.
- High-impact resistant support for secondary pipelines
- Allows controlled axial movement or firm clamping as required
- Available in multiple configurations and materials
Engineered for protection of your piggylines
Our Piggyback Blocks can be manufactured from a range of different materials depending on the client’s requirements. From virgin polyethylene, polyurethane or polypropylene, or low environmental impact marine grade recycled materials, our Piggyback Blocks always offer optimal protection and guidance of your secondary pipelines.
Why choose Lankhorst Piggyback Blocks?
High-impact resistant support for piggy linesProtects your main and secondary pipes from stress and damage during and after installation
Fast and easy installationFeatures side finger grips for aid in lifting and handling and ribbing for reduced weight
Movement controlSupports free axial movement or clamps lines firmly, depending on operational needs
Customizable solutionsAvailable for multiple piggylines, in a wide range of materials, and strapping options, tailor made
Excellent project managementDedicated project managers ensure seamless execution, on-time delivery, and project success
Extensive testing possibilitiesIn-house testing facility, including our own piggyback load testing rig
Curious how we can protect your subsea line?
Please contact one of our Regional Business Managers
Lankhorst Piggyback Block design
With ease of installation in mind, the Lankhorst Piggyback Blocks are designed to be a high-impact resistant support for secondary pipelines. The blocks can be manufactured from a range of high-performance materials, such as virgin polyethylene, polyurethane, polypropylene or low environmental impact marine grade recycled materials, depending on the offshore conditions and clients requirements.

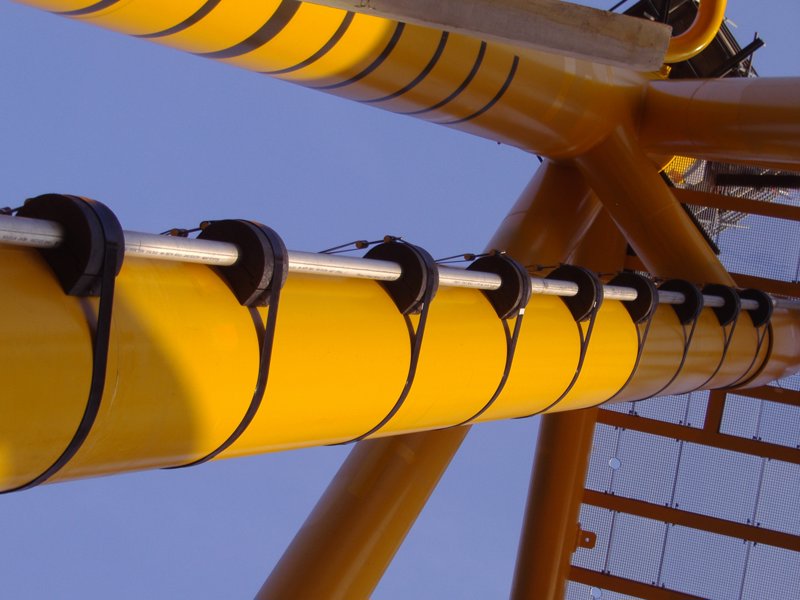

The typical design is a simple two part base and cap, designed to support and guide the piggy line(s) whilst still allowing free axial movement, thus acting as a guide. Designs are available with various gaps between the main pipe and the secondary lines.
Optimized for installation

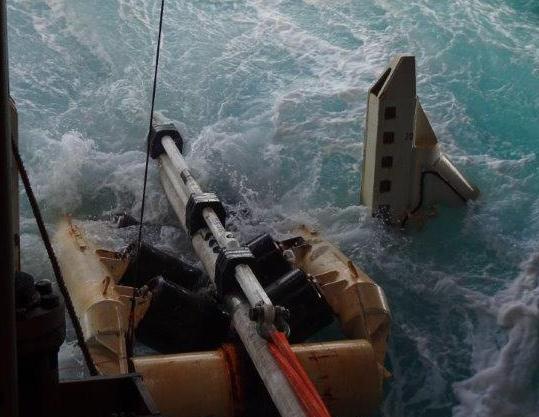

Designed with offshore field conditions in mind, Piggyback Blocks are robust, easy to handle and quick to install. The ribbed design lowers weight without compromising strength, and side finger grips simplify manual positioning.
Their function is dual: to guide piggyback lines while protecting both the main and secondary pipes from stress and damage during and after installation. Depending on the setup, the blocks allow for either unrestricted axial movement or secure clamping.
Whether installed using high-tensile carbon steel, corrosion-resistant Alloy 625, or Kevlar strapping with duplex tensioners, Piggyback Blocks are optimized for longevity and reliability.
With a proven track record in major offshore projects worldwide, Lankhorst delivers reliable, high-performance, field-proven secondary pipelines protection tailored to industry needs.
Lankhorst Piggyback Block projects
Saudi Aramco - LTA124 Marjan
ADNOC - Lower Zakum NMGL
UBOC - Umid2 & Babek
