LANKHORST VIV STRAKES
Optimized VIV suppression and protection of your riser pipes or flowlines.
World’s largest supplier of VIV strakes
Lankhorst VIV (Vortex-Induced Vibration) Strakes are engineered to suppress vibrations in subsea pipelines and risers, enhancing structural integrity and reducing fatigue.
- Tri-shell design for fast and easy installation
- Suppression efficiency exceeding 90%, while maintaining relatively low drag
- Available with additional – qualified and often patented - features
Advanced VIV suppression for offshore pipelines
Manufactured from high-impact, UV-stabilized polymers. Reducing vortex-induced vibrations well over 90%, minimizing fatigue and drag while ensuring long-term pipeline integrity.
Maximum protection against VIV suppression
Superior VIV suppressionReduces vortex-induced vibrations by over 90%, minimizing fatigue and drag
Fast and easy installationLightweight, interlocking components ensure fast and efficient offshore installation
High packing densityBy placing the vanes on the outside of the body, our packing density is increased by a factor 3 to 5
Customizable solutionsAvailable with CP shielding, spring elements, anti-fouling coating and tailored vanes heights
Excellent project managementDedicated project managers ensure seamless execution, on-time delivery, and project success.
Extensive testing possibilitiesIn-house testing facility, including testing by our stinger roller testing rig and our impact tower
Curious how we can protect your subsea line?
Please contact one of our Regional Business Managers
Lankhorst VIV strake design
Lankhorst VIV Strakes are typically recognized for their perpendicular intermittent vanes, wound around the pipe in a triple helix. The pitch of these helices is equal to 16 times the pipe OD, however alternative pitches are possible. The standard Lankhorst vane height will deliver a suppression efficiency that is well beyond the generally required 90% compared to bare pipe. The drag increase is relatively low.
Optimized for installation

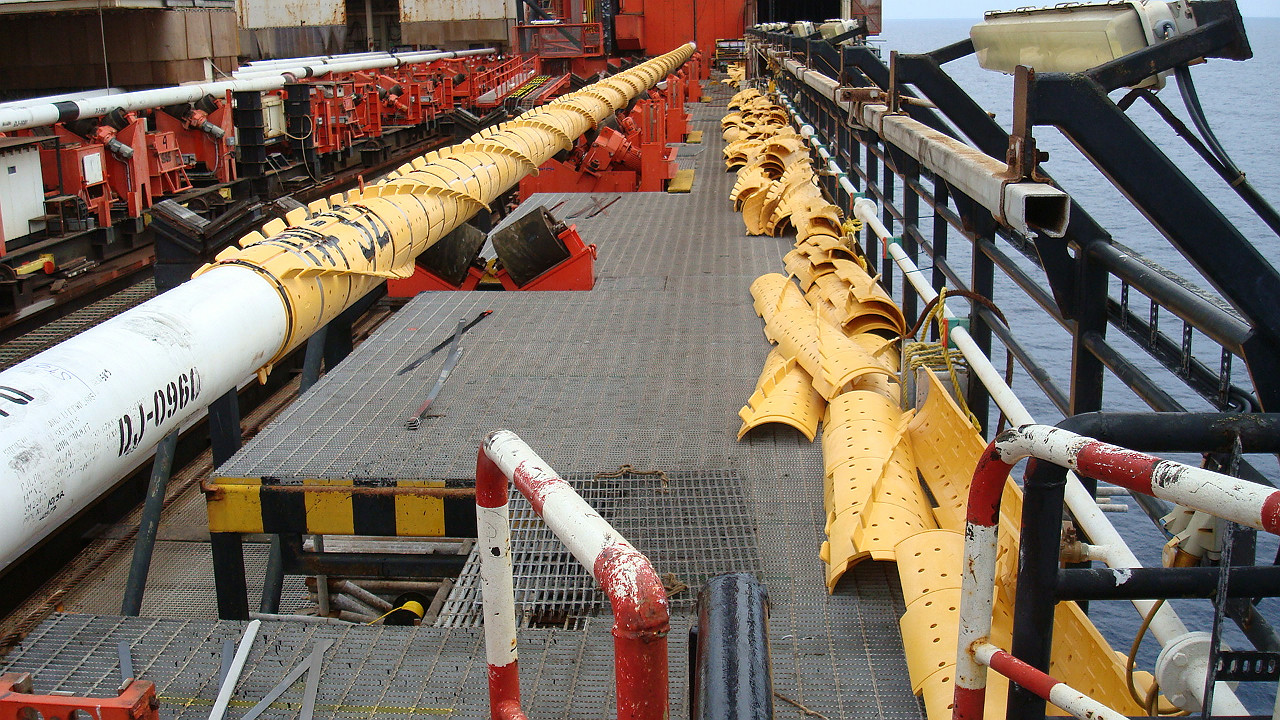

Lankhorst VIV suppression strakes have been designed with ease and speed of installation as a key design feature in order to minimize the expense of offshore installation time. By using the tri-shell concept, strakes are light and installation speed is optimized. Tri-shells also have a high packing density, so that the number of supply barge movements offshore and needed deck space can be kept to a minimum.
To improve on packing density, in 2020 Lankhorst developed the TriVIV 2.0. This type of Lankhorst VIV strake offers five times improved packing density, making it the ideal choice for Reel-lay applications with no load constraints. Once installed, TriVIV2.0 maintains the exact same vane configuration as the original TriVIV, ensuring identical performance and suppression efficiency. Both versions share the same rigorous qualifications and proven track record, providing reliable VIV suppression across various offshore applications.
Lankhorst VIV strake projects
Petrobras - Mero4TriVIV 2.0 - Reel-lay
Equinor - IrpaTriVIV 2.0 - Reel-lay
ExxonMobil - WhiptailVIV - J-lay
